Wheel Shop

WTB DX18 / Shimano HB-M475 / FH-M475 700C / 29''

$109.99 CAD

Sale Sold out

Title HB-M475, Wheel, Front, 700C / 622, Holes: 36, QR, 100mm, Rim and Disc IS 6-bolt (041860-01-29) FH-M475, Wheel, Rear, 700C / 622, Holes: 36, QR, 135mm, Rim and Disc IS 6-bolt, Shimano HG (041860-02-29) HB-M475, Wheel, Front, 700C / 622, Holes: 36, QR, 100mm, Rim and Disc IS 6-bolt (041860-03-700) FH-M475, Wheel, Rear, 700C / 622, Holes: 36, QR, 135mm, Rim and Disc IS 6-bolt, Shimano HG (041860-04-700)

Quantity

Anodized black finish
CNC machined sidewalls
Stainless steel eyelets
Rim wear indicator
Pinned joint
Drilled for Schrader valve
36 holes

Front hub: Shimano HB-M475 (Black)
9x100mm
6-Bolt Disc Mount
Adjutable Cup & Cone
Contact sealed hub
Quick Release Binder included

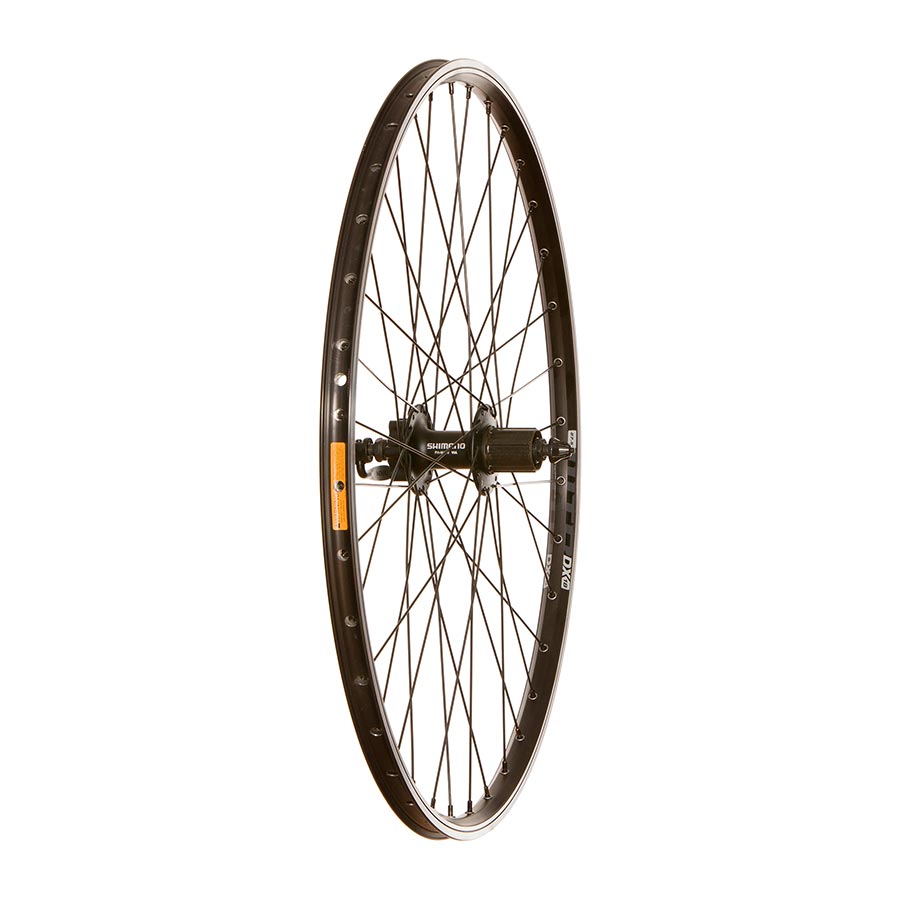

Rear hub: Shimano FH-M475 (Black)
10x135mm
6-Bolt Disc Mount
Adjutable Cup & Cone
Contact sealed hub and freehub body
Quick Release Binder included
Compatible with 8,9,10 speed (MTB 11 speed requires 1.85mm spacer, not included)

Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

Attributes

Axle Type	QR
Depth	18mm
Rim Color	Black
Rim Construction	Double wall
Rim Drilling	36
Rim External Width	23.5mm
Rim inner width range	0-21.9mm
Rim Internal Width	19mm
Rim Material	Aluminum
Rim Model	WTB DX18
Skewers Included	Yes
Valve	Schrader
Wheel Diameter/ISO	700C / 622
Wheel Tire Type	Clincher
Wheel-Brake Comp.	Rim and Disc IS 6-bolt
