Wheel Shop

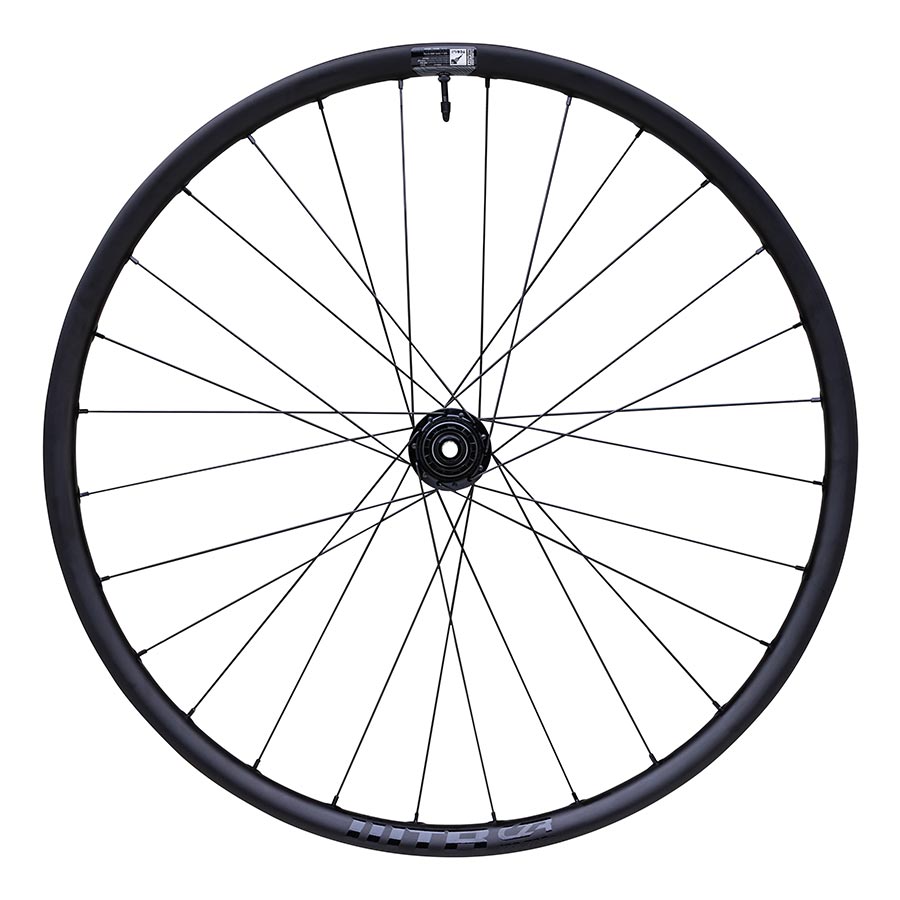

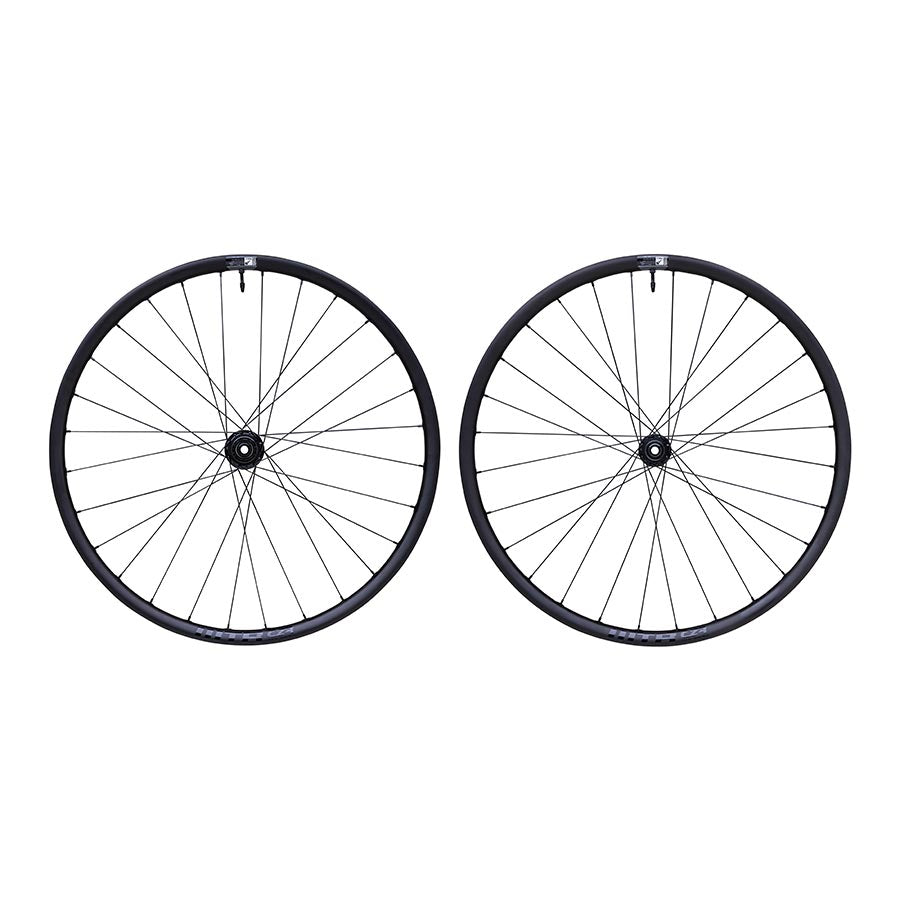

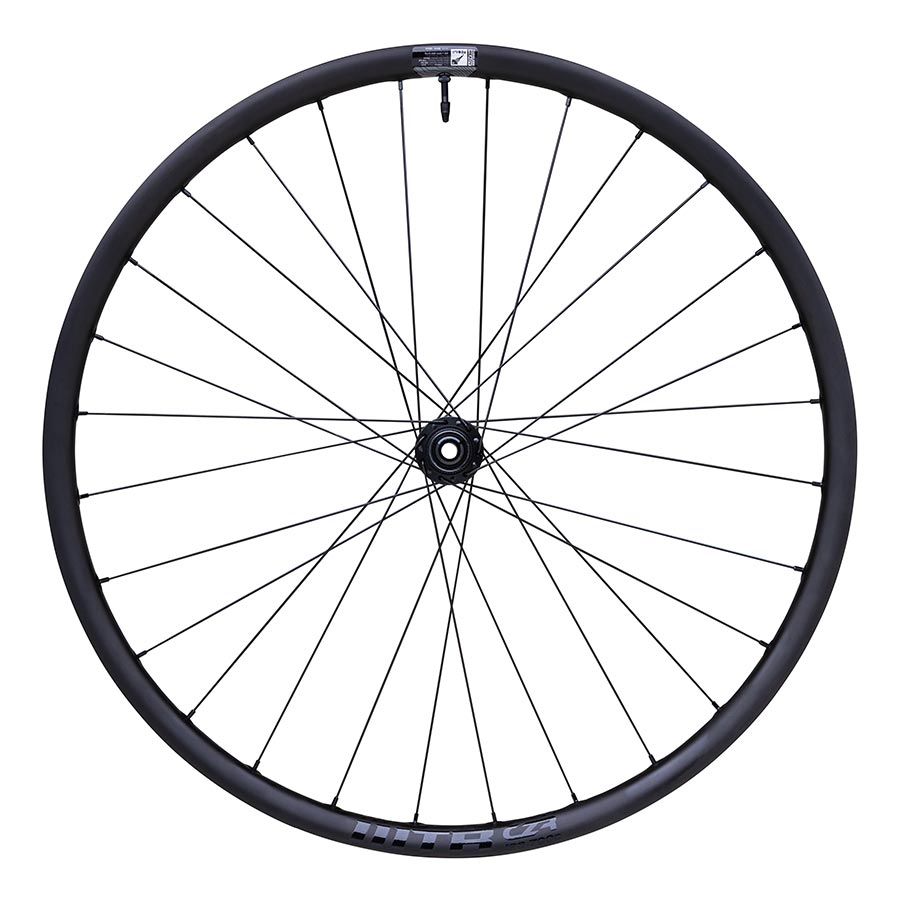

WTB CZR i23 Carbon Wheelset / Shimano HB-RS770 + FH-RS770 70

WTB CZR i23 Carbon Wheelset / Shimano HB-RS770 + FH-RS770 70

Regular price $1,999.99 CAD
Regular price Sale price $1,999.99 CAD
Sale Sold out
Title
    Rims: WTB CZR i23 Carbon 700C
  • ETRTO 622-23
  • Inner width: 23mm
  • Torayca T700 UD carbon fiber for stiffness and compliance
  • Asymetric and angled spoke hole drilling
  • Externally reinforced spoke bed
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible

  • 28 holes

    Front hub: Shimano HB-RS770 Ultegra series
  • 12x100mm E-THRU (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

    Rear hub: Shimano FH-RS770 Ultegra series
  • 12x142mm E-THRU (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub and freehub body
  • Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

    Sold in Pair, including:
  • Tubeless Valve (x2)

    Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Ni
Attributes
Axle Type F: 12mm, R: 12mm
Depth 24mm
Freehub Body Shimano HG 11
Hub Model Shimano RS770
Hub Spacing F: 100, R: 142
Position Front and Rear
Rim Color Black
Rim Construction Double wall
Rim Drilling 28
Rim External Width 28.5mm
Rim inner width range 22-27.9mm
Rim Internal Width 23mm
Rim Material Carbon
Rim Model WTB CZR i23
Skewers Included No
Spoke Type Sapim Race
Valve Presta
Wheel Diameter/ISO 700C / 622
Wheel Tire Type Tubeless Compatible
Wheel Weight 1512g (pair)
Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
View full details
