Surly Big Easy

Why buy an e-bike from your Local Bike Shop?

It is assembled by a trained professional with a safety check and a warranty.

Your bike is made from available and replaceable bicycle parts.

If something goes wrong, then we are here for you, in person, face to face.

The Big Easy is a long tail Electric Cargo Bike that expands what's possible by bike!

Simplify the Haul With an Electric Cargo Bike

Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a long-tail cargo bike with passengers along for the ride. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy – our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.

When it comes to geometry, Big Easy rides and feels like a normal-length bike – the upright, engaged rider position keeps things comfortable. So, whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.

• Full component set selected for the demands of heavy cargo hauling, including Tektro four-piston hydraulic brakes for enhanced stopping power
• Expanded rider fit per size and long throw dropper post compatibility to improve bike sharing among different-sized riders
• Equipped with the most powerful Bosch electric bike motor for elevated performance

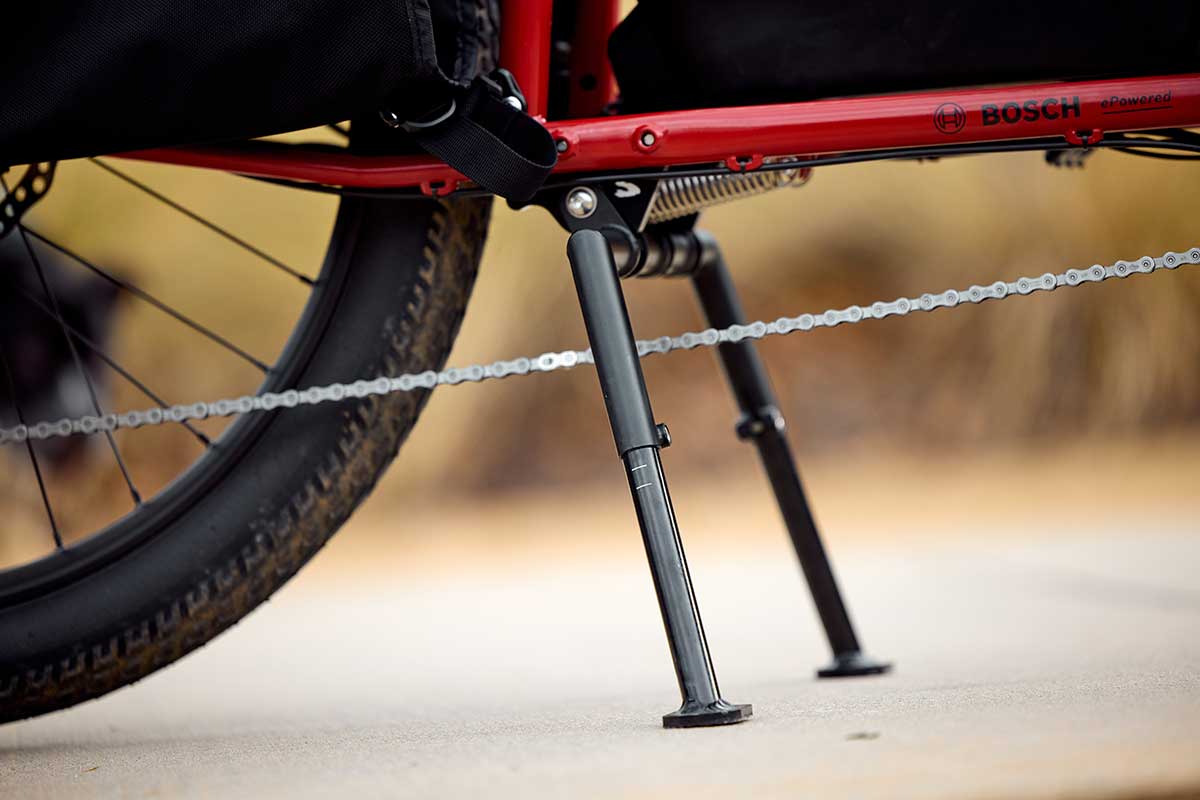

• Features Surly dual-leg kickstand for unmatched stability when loading and unloading cargo
• Two-seat compatibility for human passengers big or small – no adapter needed (Thule Yepp Nexxt Maxi and Burley Dash)
• Lower stand over height for improved stability when stopping, mounting, and dismounting
• High-rise Surly Sunrise handlebars give riders leverage to control heavy loads and the body position to keep you comfortable
• Featuring updated Big Dummy bags with simplified design and consistent cargo capacity
• Damping headset for smooth and stable handling under heavy loads
• Capable of running dual batteries for extended range
• Large-volume 26 x 2.5" Extraterrestrial tires for smoother rides and durable wheel builds for added stiffness and strength
• Big Easy complete bikes available for purchase in the US and Canada only
• NOT compatible with our Bill and Ted trailers
• Meets UL 2849, and UL 2271 certification

Specs:

Frameset:

Frame

Big Easy

Fork

Dinner Fork

Color

Pile of Bricks Red

Components

Headset

Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower

Stem

Sunday Freeze Top Load 48mm

Handlebar

Surly Sunrise

Grips

Velo Black

Seatpost

TransX JD-YSP15, 30.9mm Dropper Post

Saddle

WTB Volt

Misc

Deck, rails, bags, kickstand, and one set of round pegs included.

Drivetrain

Drive Unit

Bosch Performance Line Cargo with Intuvia 100 Display and LED Remote

E-Bike Classification

Class 1

Drive Type

Mid-Drive

Max Assist Speed

20 mph

Motor Torque

85Nm

Range Estimate

A 15–50 mile range is normal for Big Easy, but your mileage may vary depending on support mode, rider weight, cargo load, etc.

Assist Levels

4 Assist Levels - Eco, Tour+, Cargo, Turbo

Walk Assist

Yes

Max Motor Assist

340%, 600W

Throttle

No

Gross Payload

400lb max total rider + cargo

Battery Capacity Watt Hours

725Wh

Battery Capacity Amp Hours

19.2Ah

Battery Power Volts

36V

Removable Battery

Yes, Bosch PowerPack 725Wh

Estimated Charge Time

6 hours

Charger Included

Yes, Bosch 4A Charger (110V)

Lights Included

No

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U4000 GS

Cassette

Shimano Cues LG400, 11-46t, 9 speed

Chain

KMC eGlide EPT Anti-Rust

Crankset

FSA E-Bike CK-763/IS, paired with 38T FSA Chainring

Shifter

Shimano Cues U4000

Brakes Levers

Tektro HD-T740

Brake Calipers

Tektro HD-T740, 4 Piston

Rotors

Tektro 203mm F/180mm R, 6-Bolt

Bottom Bracket

N/A

Wheels

Front Hub

Novatec 15 x 110mm, 32h, 6 Bolt

Rear Hub

Novatec 12 x 148mm, 32h, 6 Bolt

Spokes

Straight 14g, Black

Rims

Alex MD30, 26", 32h

Front Tire

Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible

Rear Tire

Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible

Complete bike weight

74lb (size Medium)
