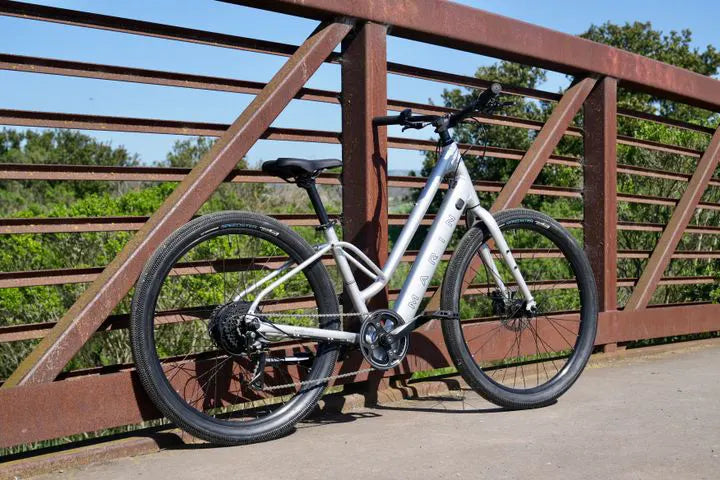

Marin Stinson E Electric bike

$2,099.99 CAD

Sale Sold out

Size Small Medium Large XL

Quantity

Our renowned Stinson comfort bike, now with a boost. The Stinson E takes all the beloved features of the standard model, but delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.

Why buy an e-bike from your Local Bike Shop?

It is assembled by a trained professional with a safety check and a warranty.

Your bike is made from available and replaceable bicycle parts.

If something goes wrong, then we are here for you, in person, face to face.

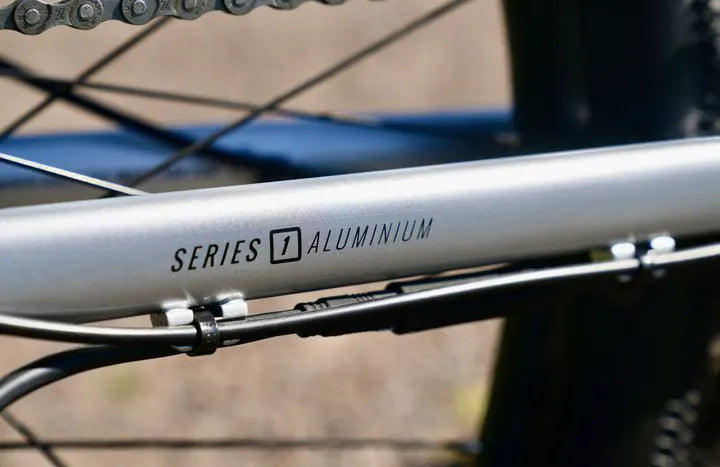

SERIES 1 FRAME
The Stinson E features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5” wheels. Stinson ST models further lower the standover height with a step-through frame design. Both versions incorporate the battery into the downtube for clean looks and added security.

ELECTRIC DRIVETRAIN

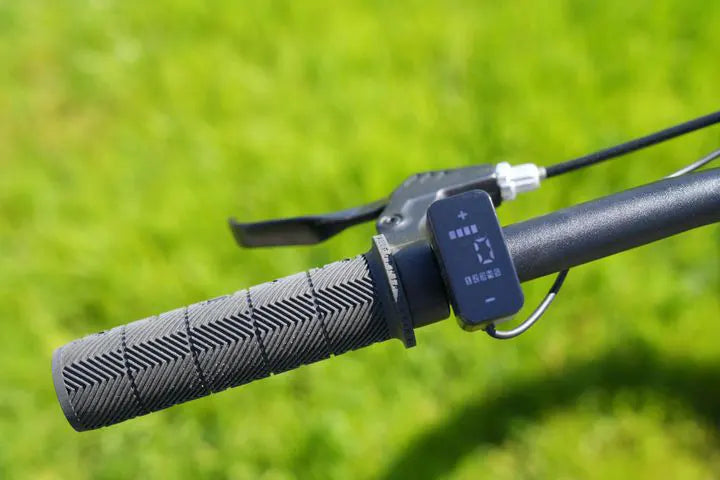

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.

INTERNAL BATTERY

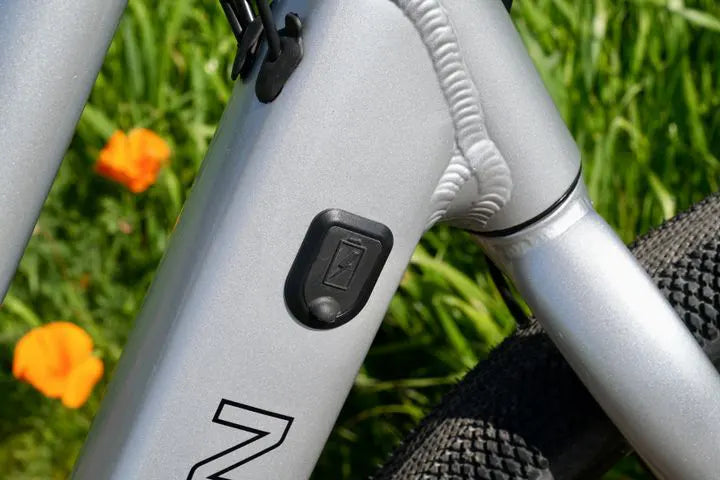

A new feature for the model family, the 340Wh in-tube battery is neatly integrated into the Stinson E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.

DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions.

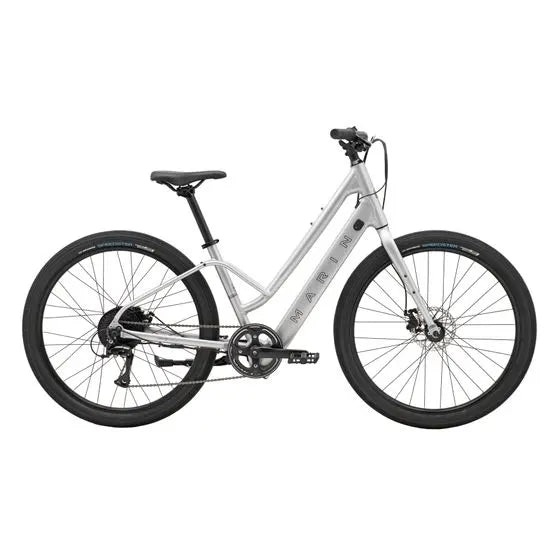

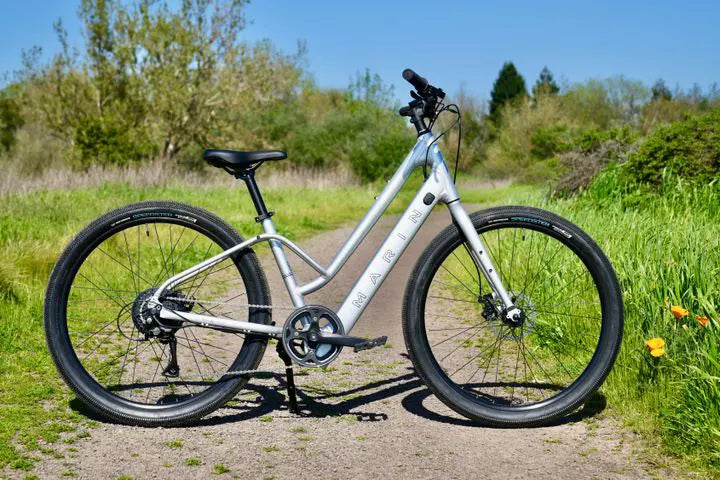

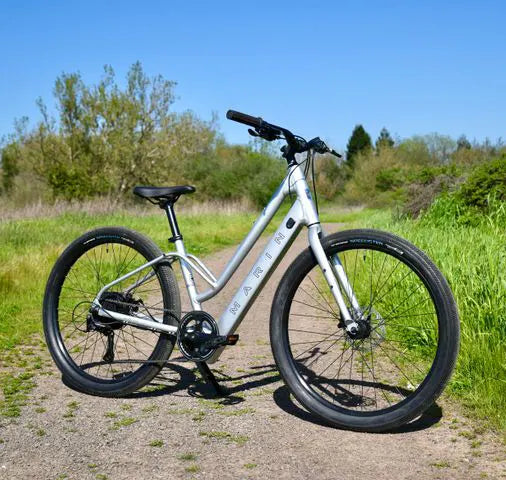

STEP THROUGH DESIGN

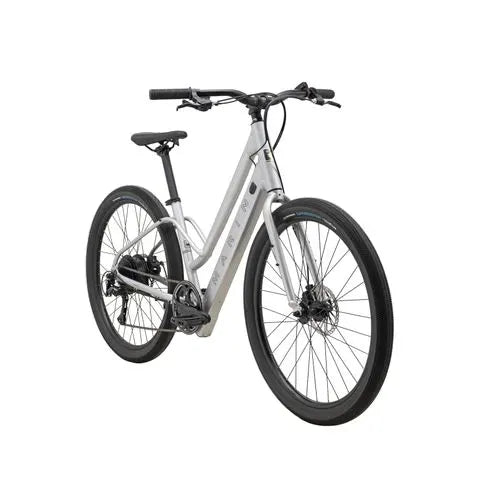

The Stinson E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.

SHIMANO DRIVETRAIN
Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.

SMOOTH-ROLLING RUBBER
The Stinson E rolls on Vee Tire Co's Speedster 27.5 x 2.35" tires, which feature high volume and low knobs for comfort and efficiency, and lots of gripping edges for control on pavement or improved off-road surfaces.

LIGHTING CONTROL
The Stinson E is equipped to power accessory lighting, with a wiring harness just waiting to be plugged into. Headlamp and taillamps are then controlled by holding down the system controller switch.

Specifications

Frame
Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Rims
Marin Aluminum Double Wall, Disc Specific

Hub, Rear
Bafang 250 Watt Hub Motor, 40Nm, 36H

Hub, Front
Forged Aluminum Alloy, 32H

Spoke, Nipples
14g Stainless Steel

Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Derailleur, Rear
Shimano Acera, 8-Speed

Shift Lever
Shimano Altus 8-Speed RapidFire

Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard

Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Chain
KMC Z8

Cassette
SunRace 8-Speed Freewheel, 11-34T
