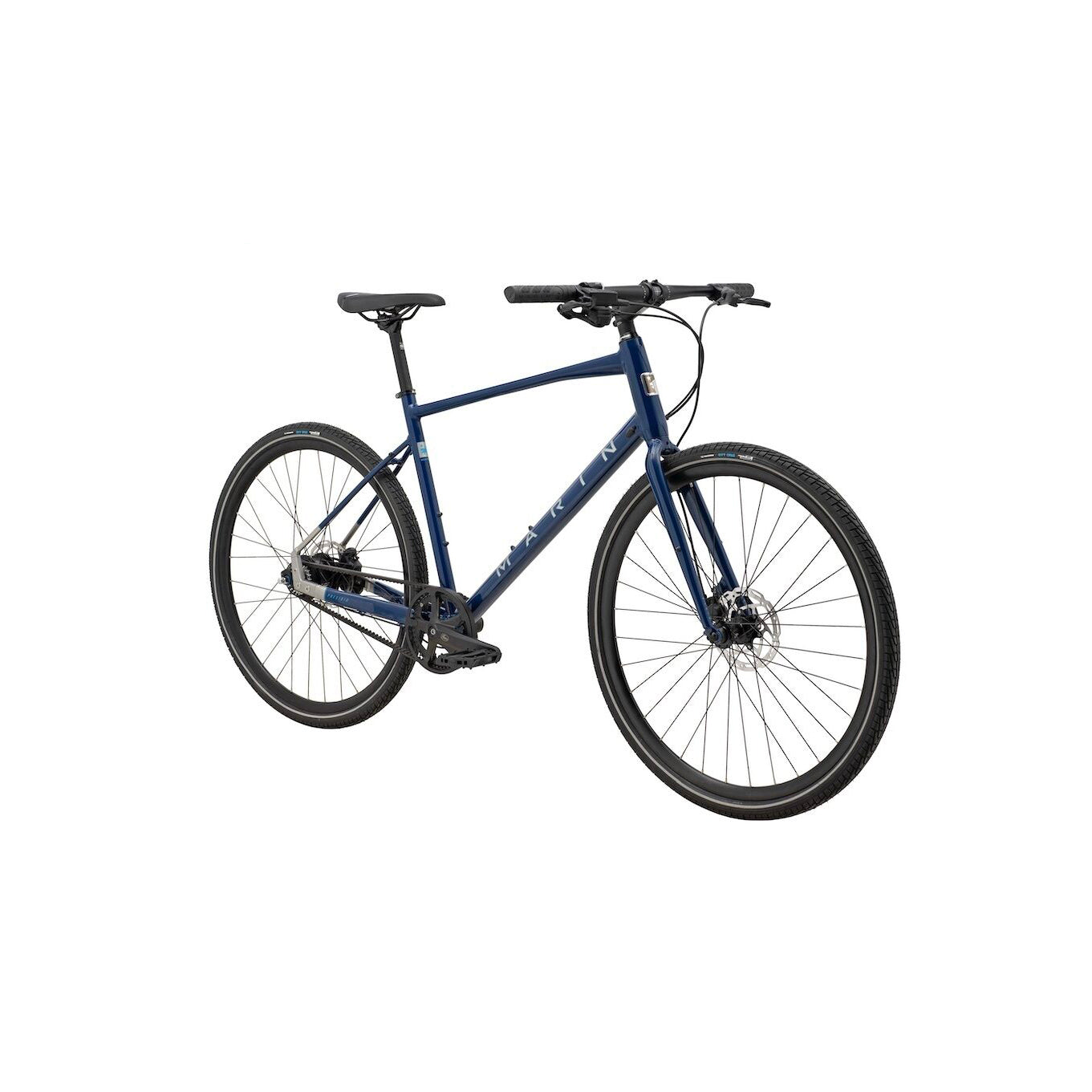

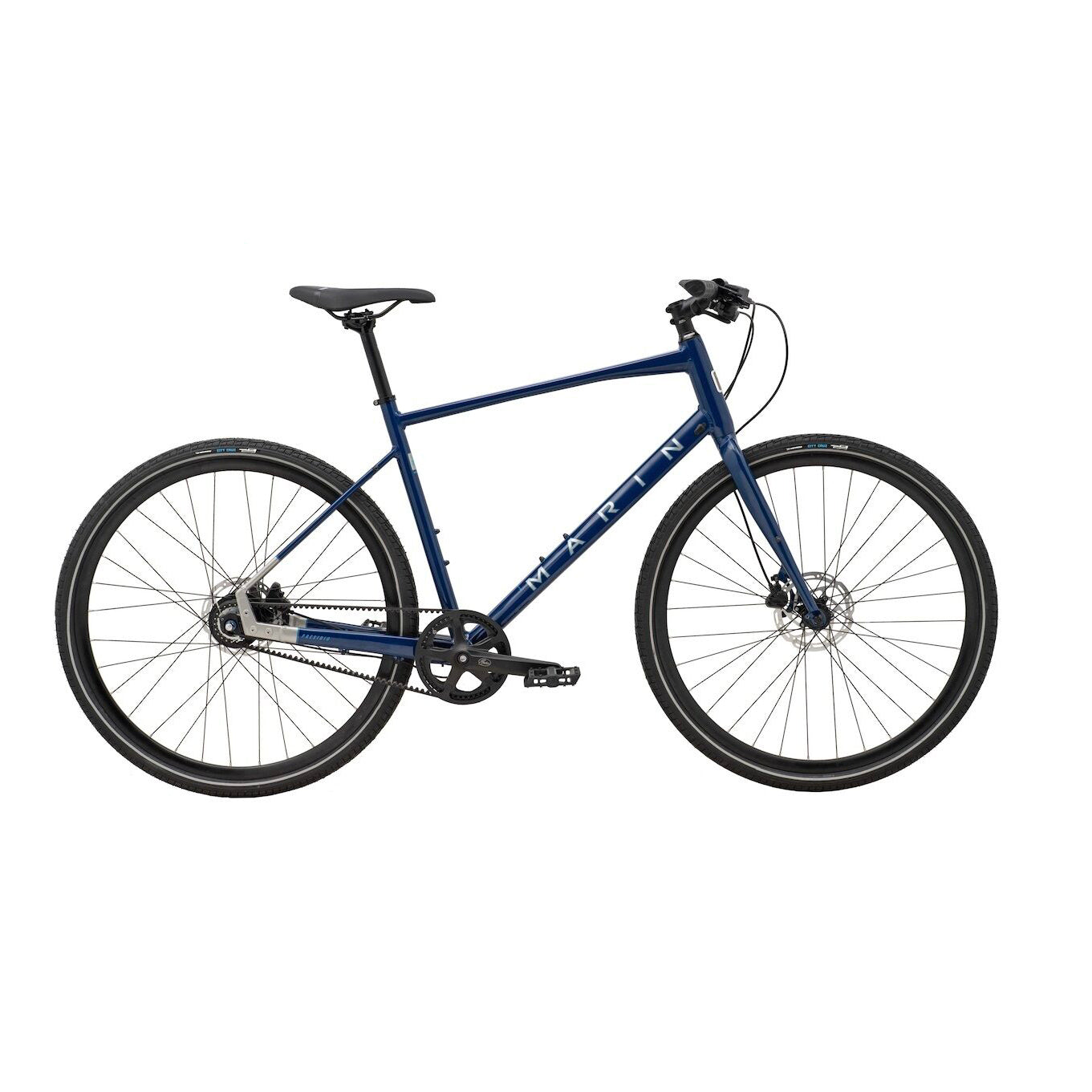

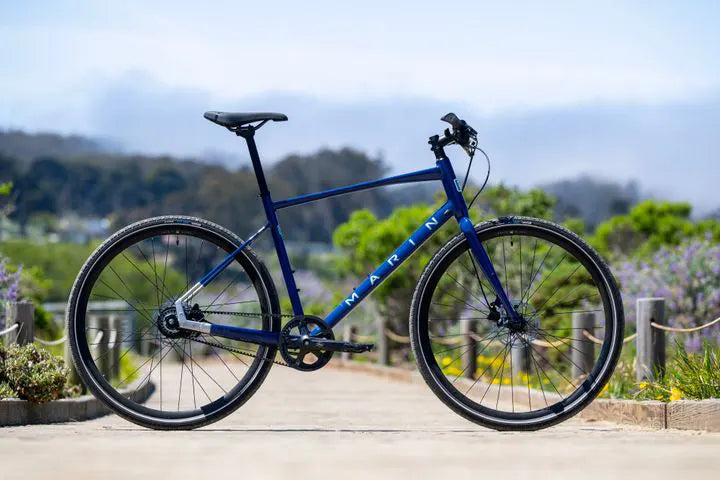

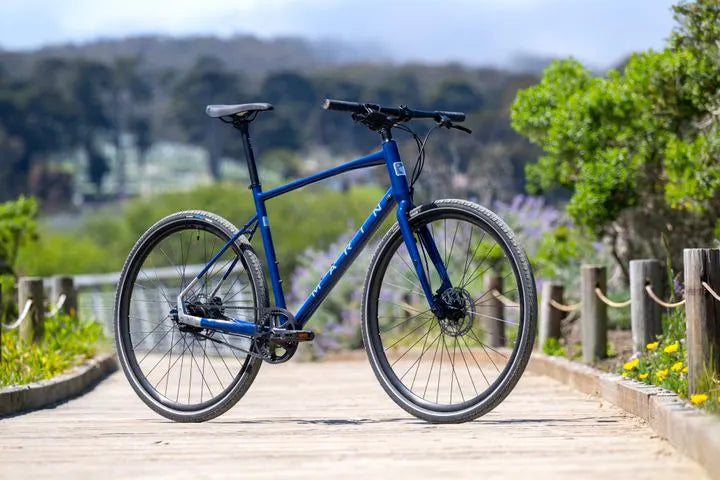

Marin Presidio 3

Special order item -- Available from us, ordered through our distributor :)

Please call our shop for accurate stock levels - 416-677-9482

Why buy from your Local Bike Shop?

Your bike is assembled by a trained professional with a safety check and a warranty.

If something goes wrong, then we are here for you.

COMMUTING

CITY TRANSIT

The Marin Presidio 3 is the commuter bike of your dreams, because why shouldn’t your daily driver also be a sports car? We’ve built a fast, fun and exciting commuter with a lightweight Series 2 aluminum frame and straight-blade fork.

We’ve also added heaps of reliability and “woah, that’s cool!” with a Gates Carbon Drive 8-speed belt-driven drivetrain and internally-geared Shimano Nexus rear hub. Shimano hydraulic disc brakes, Vee Tire tires and plenty of reliable Marin components complete the package.

Key Uprgades from the Presidio 2

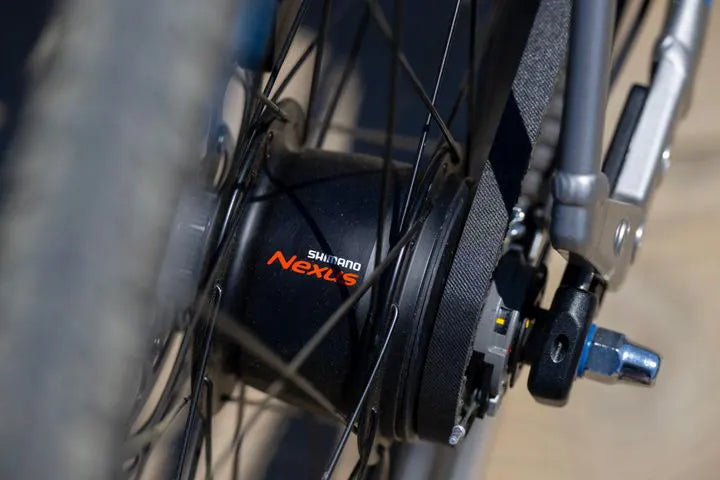

Shimano Nexus 8D 8-speed internally geared hub
Gates CDN belt drive

SPECIFICATIONS

Frame
Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts

Fork
6061 Aluminum, Straight-Blade, Post-Mount Disc

Rims
Marin Aluminum Double Wall, 25mm Tall, Disc Specific

Hub, Rear
Shimano Nexus 8D 8-Speed Internally Geared Hub, Disc, 32H

Hub, Front
Forged Aluminum Alloy, Disc, 32H

Spoke, Nipples
14g Black Stainless Steel

Tires
Vee Tire Co., Baldy, 700Cx32mm, Puncture Protection, Reflective Sidewall, Wire Bead

Derailleur, Rear
-

Derailleur, Front
-

Shift Lever
microSHIFT SL 8-Speed IG Shifter

Crankset
Gates Carbon Drive S150, 50T

Bottom Bracket
Sealed Cartridge Bearings, Square Taper

Belt
Gates Carbon Drive CDN Centertrack, 118T

Cog
Gates Carbon Drive CDN Center Track, 22T

Brake, Front
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor

Brake, Rear
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor

Brake Levers
Shimano Hydraulic

Handlebar
Marin Alloy Flat Top Riser

Stem
Marin 3D Forged Alloy

Grips
Marin Ergonomic Locking

Headset
FSA Orbit CE, Sealed Cartridge Bearings

Seatpost
Marin Alloy, 27.2mm

Saddle
Marin Fitness

Pedals
Nylon Platform

SIZING GUIDE

Sizing Guide:

XS 4'10" - 5'2"

S 5' - 5'5"

M 5'4" - 5'10"

L 5'9" - 6'2"

** For accurate fitting come see one of our professionals in store.

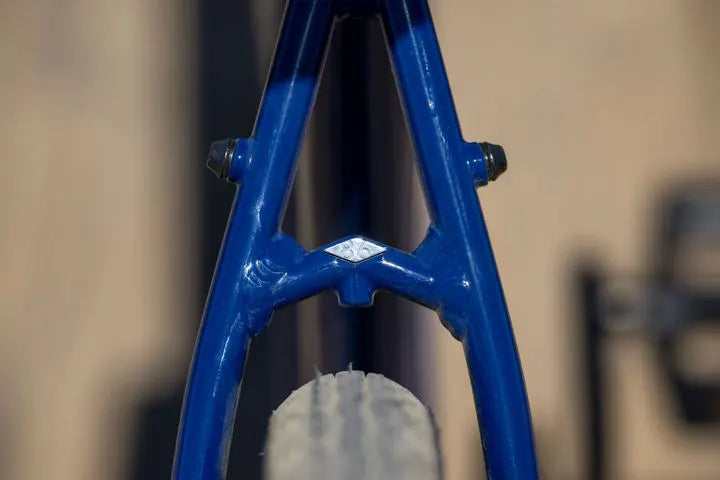

LIGHTWEIGHT ALUMINUM FRAMES

Presidio frames are constructed of lightweight 6061 aluminum tubing with internal cable routing, and rack and fender mounts. Series 2 tubing on the Presidio 3 and 2 models add belt drive compatible forged slider dropouts for internally geared hubs.

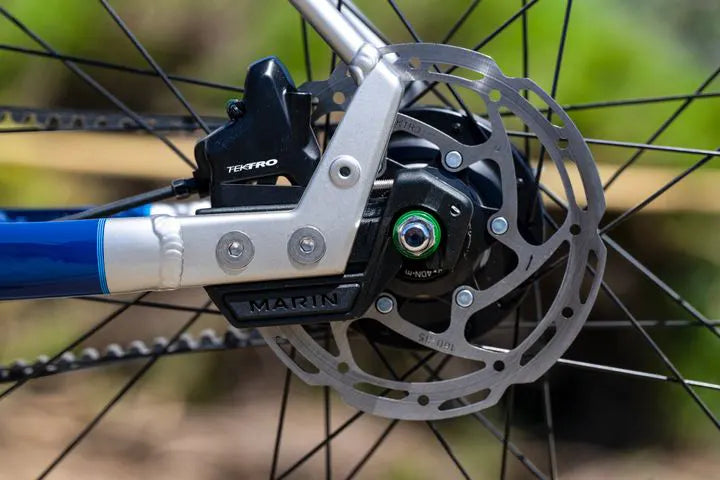

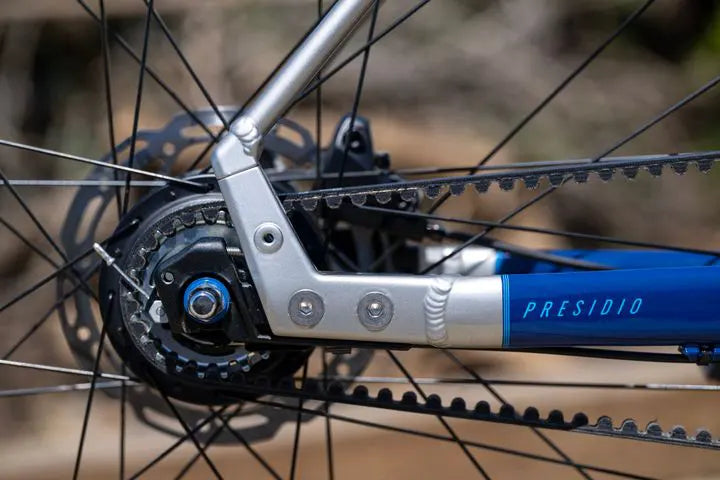

MARIN SLIDER DROPOUTS

Our new slider dropouts were created specifically to bring the best

technologies for commute bikes into a clean and tidy package. The

dropouts slide to tension belts and chains, while incorporating flat

mount disc brakes, and a direct mount rear kickstand to support the

bike where weight is centered with gear.
