ADVENTURE ROAD AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT

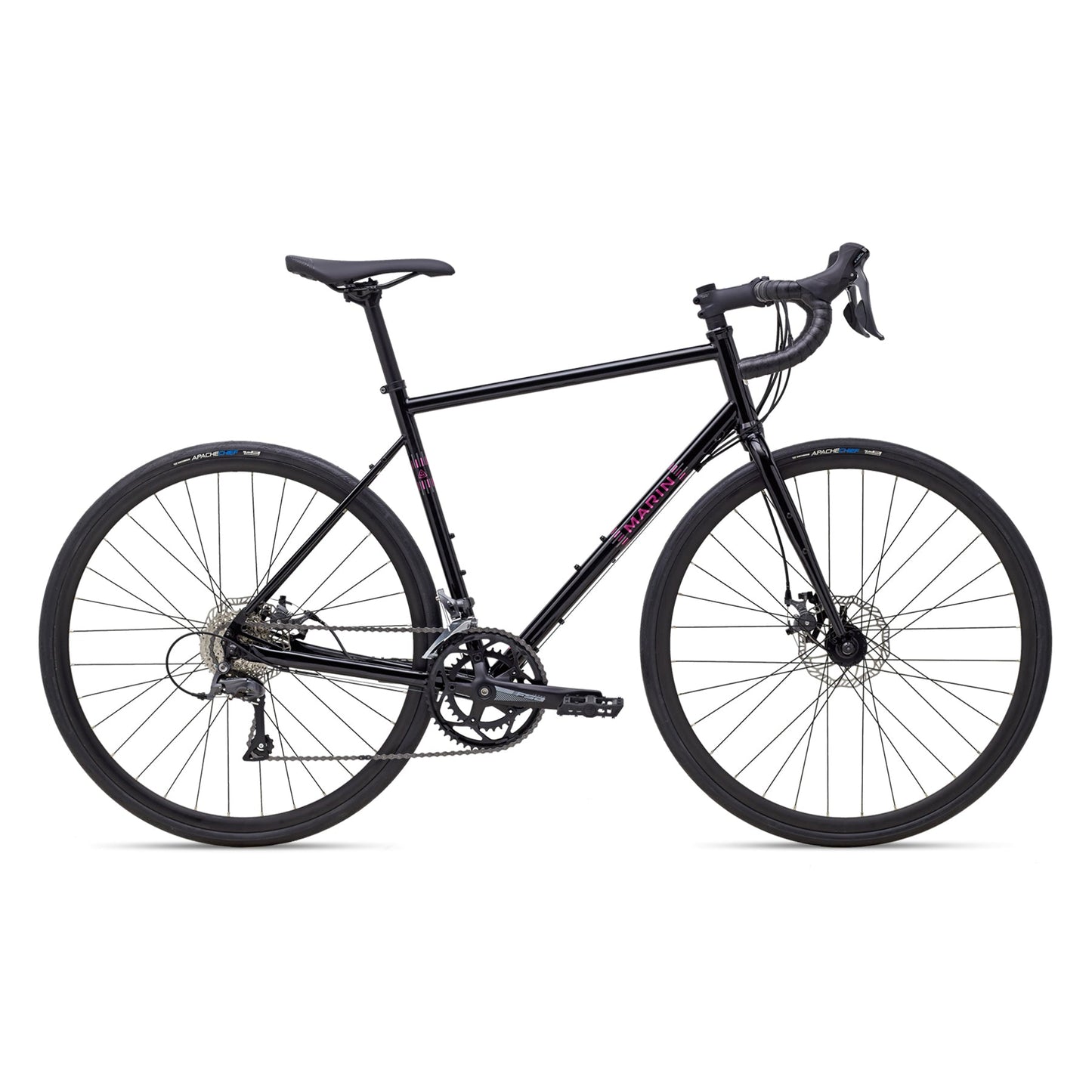

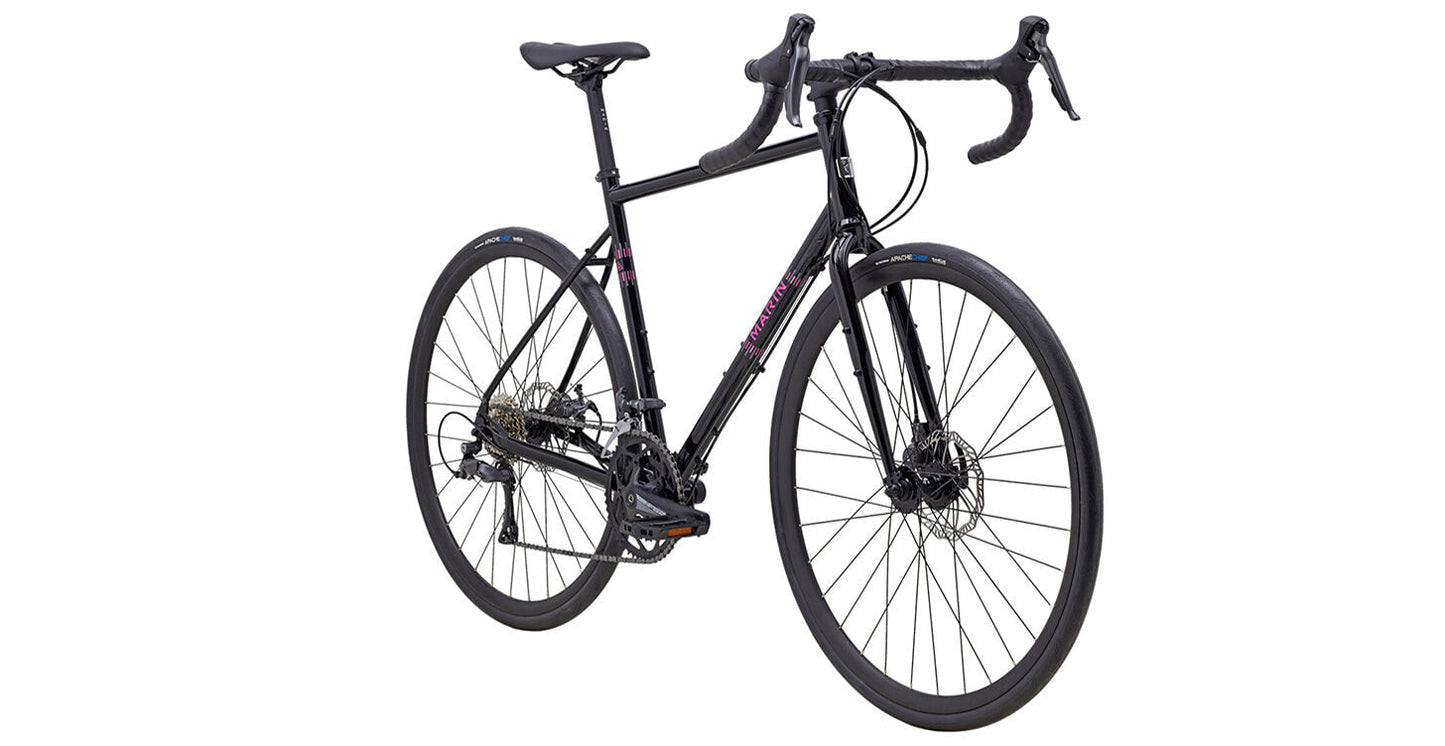

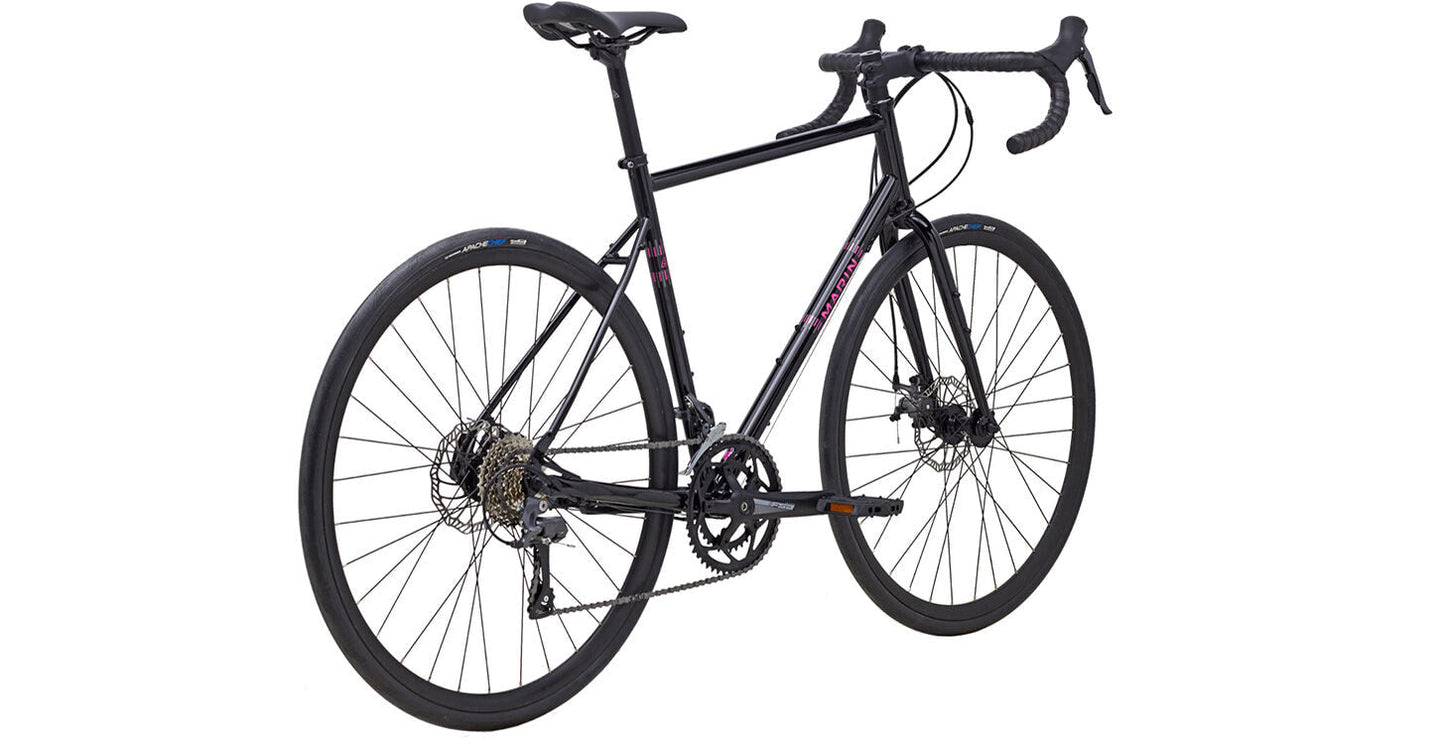

The Marin Nicasio+ is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x 47mm tires to let riders handle any surface.
Born from the same ethos as the Gestalt series, the Nicasio is designed to take you Beyond Road. These endurance models let you take any path you’d like.
Key upgrades over the Nicasio:
650x47mm wheelset w/WTB Horizon tires
MicroSHIFT wide range 1x9 drivetrain
Why buy from your Local Bike Shop?
Your bike is assembled by a trained professional with a safety check and a warranty.
If something goes wrong, then we are here for you.
Sizing Guide:
50cm 4'11" - 5'4"
52cm 5'3" - 5'6"
54cm 5'6" - 5'9"
56cm 5'9" - 6'0"
58cm 6'0" - 6'2"
60cm 6'2" - 6'4"
** For accurate fitting come see one of our professionals in store.
SPECIFICATIONS
FRAME

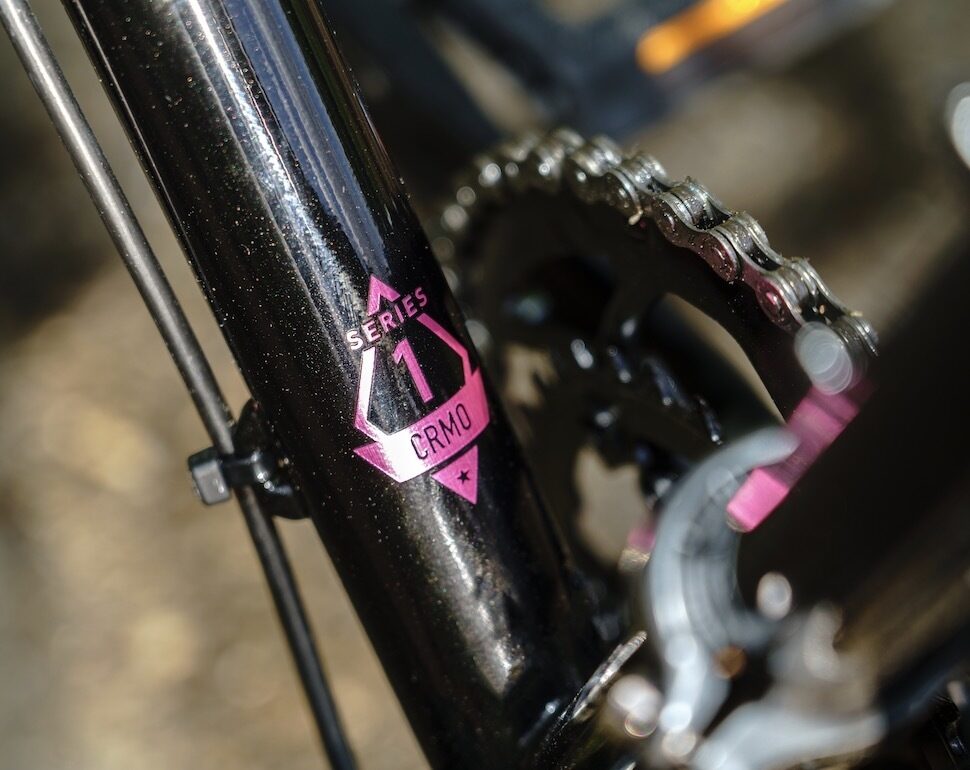

Series 1 Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
FORK
CrMo, Fender and Rack Eyelets, IS Disc Mount
RIMS
Marin Aluminum Double Wall, 25mm Inner, Disc Specific
HUB, REAR
Forged Aluminum Alloy, Disc, 32H
HUB, FRONT
Forged Aluminum Alloy, Disc, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
WTB Horizon, 650Bx47mm
DERAILLEUR, REAR
microSHIFT Advent, 1x9 w/ Clutch Mech
SHIFT LEVER
microSHIFT Advent, 1x9 Specific
CRANKSET
FS Vero Pro, Narrow Wide, 42T
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
CHAIN
KMC X9
CASSETTE
SunRace 9-Speed, 11-46T
BRAKE, FRONT

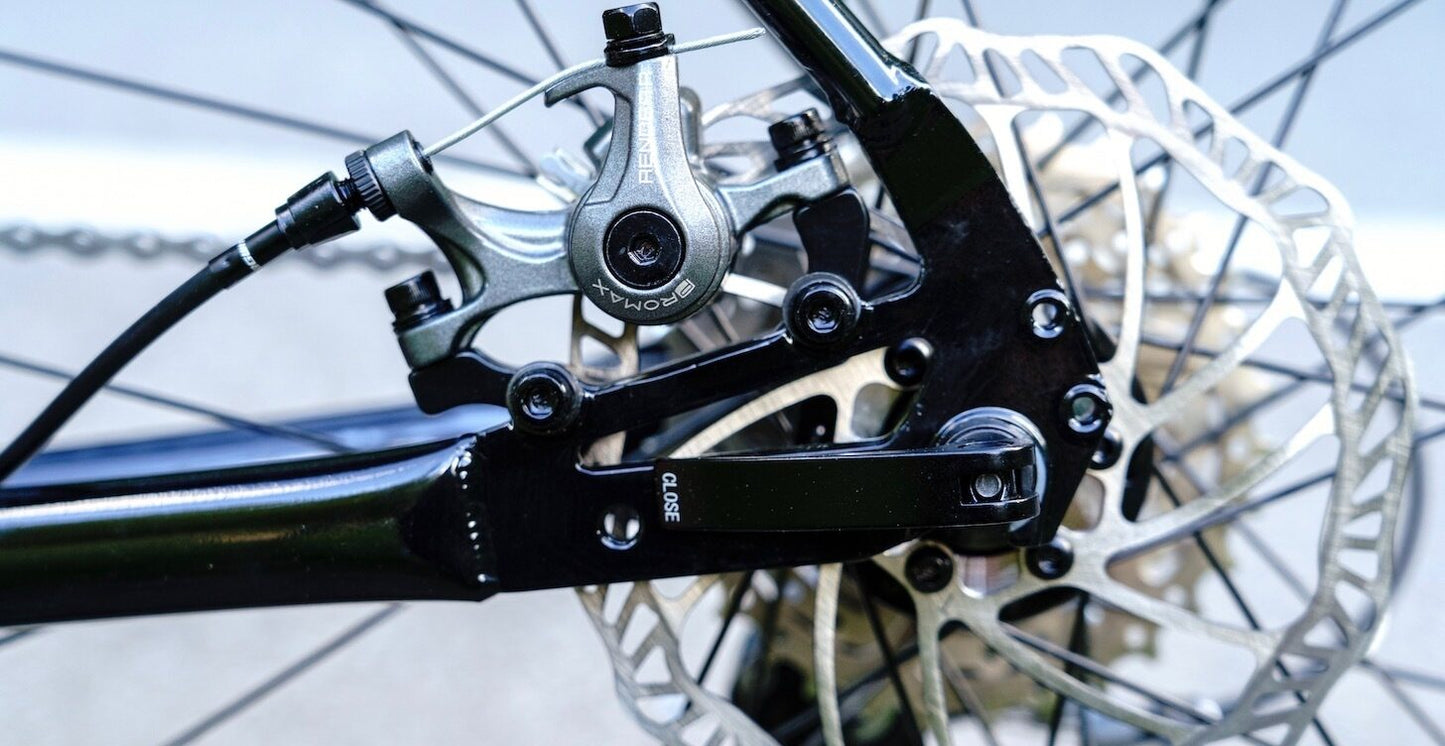

Tektro MDC400, Road Mechanical, 160mm Rotor
BRAKE, REAR
Tektro MDC400, Road Mechanical, 160mm Rotor
BRAKE LEVERS
microSHIFT Advent
HANDLEBAR
Marin Butted Alloy, Compact 12º Flared Drop
STEM
Marin 3D Forged Alloy
GRIPS
Marin Comfort Tape
HEADSET
FSA ORBIT CE No.8B, Sealed Cartridge Bearings
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Beyond Road Concept
